Three verbs · four laws · two circles
01 / the grammar of fields

A value at
every point.

A scalar field assigns one number everywhere: temperature, altitude, voltage. A vector field assigns an arrow everywhere: wind, flow, electric field, magnetic field. The same operator, ∇ “del,” gives us three verbs for reading them.

grad ∇f · uphill? · E = −∇Vdiv ∇·F · source or sink?curl ∇×F · does it swirl?
Grad turns a scalar landscape into its steepest arrow. Div measures net flow from a tiny box. Curl asks whether a tiny paddlewheel would spin.
02 / Maxwell · four lines become light

The fields hand
the baton back.

Charge sources E; magnetic field lines never begin or end. A changing B curls an E, and current or a changing E curls a B. In empty space those changing fields sustain one another and propagate.

∇·E = ρ/ε₀   ∇·B = 0

∇×E = −∂B/∂t   ∇×B = μ₀J + μ₀ε₀∂E/∂t
The equations predict a wave speed: c = 1 / √(μ₀ε₀). Light is electromagnetic.
03 / when the wire becomes a wave

Black
magic.

At radio frequency, a wire is no longer merely a connection. Its length matters. Energy propagates, meets a load, and part of it can return. Incident and reflected waves occupy the same line.

Transmission lineStanding waveImpedance mismatch
04 / the finite map of an infinite plane

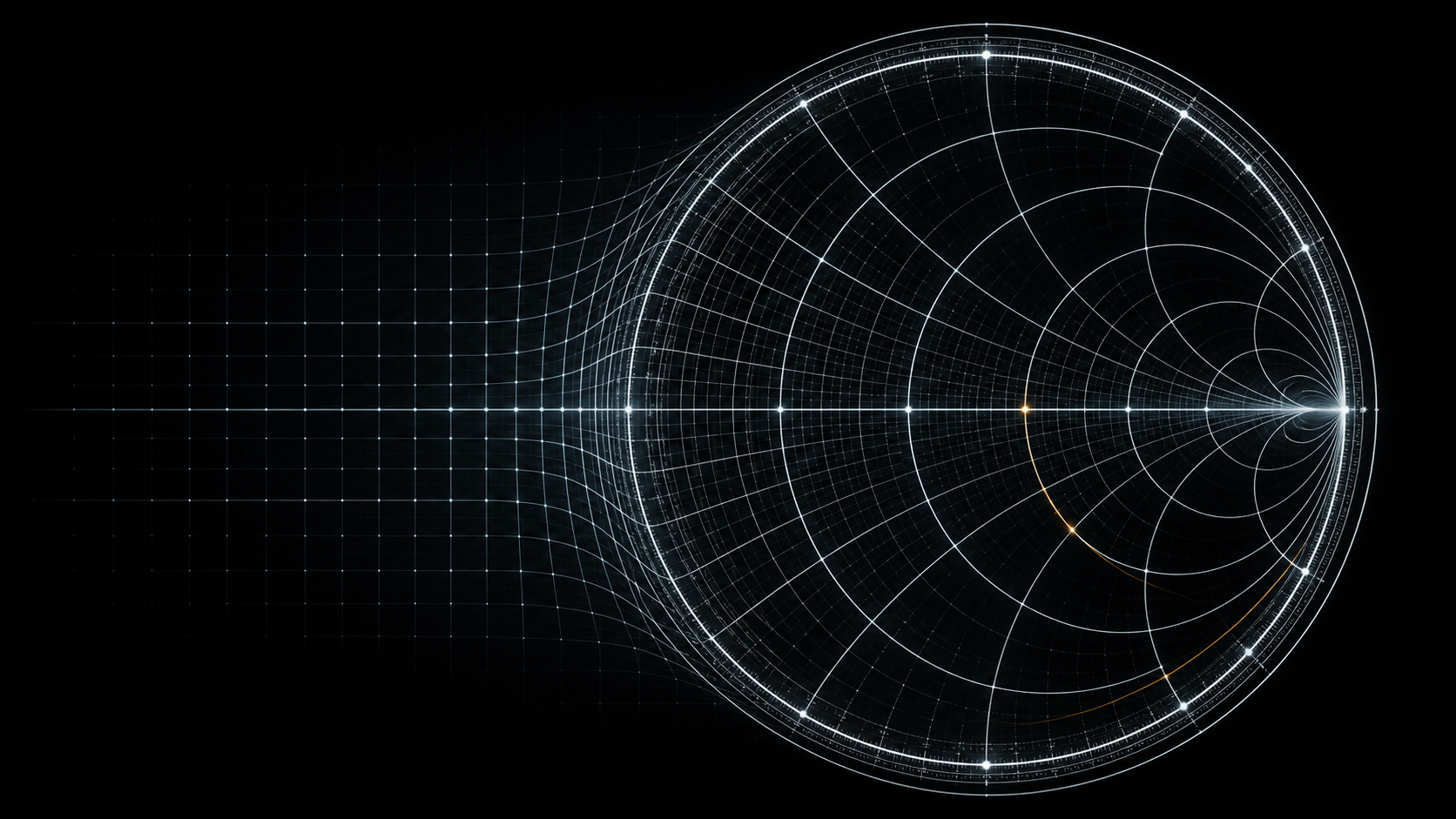

Fold infinity
into a circle.

The Smith Chart does not abolish complex arithmetic. It changes coordinates. A bilinear transform maps normalized impedance into the reflection-coefficient plane, containing every passive load inside one finite circle.

Γ = (z − 1) / (z + 1)
z = Z / Z₀Re(z) ≥ 0|Γ| ≤ 1
05 / reflection becomes location

A wave
becomes a point.

The center is a matched load: no reflection. The rim is total reflection. Open circuit and infinite impedance land at the same exact edge point, Γ = +1. Moving along a lossless line becomes rotation around the chart.

Match Γ = 0Open Γ = +1Short Γ = −1
The diagram feels impossible because the coordinate system is doing the calculus for you.
06 / Kaluza 1921 · Klein 1926

Hide a dimension
in a circle.

Kaluza extended general relativity to five dimensions. Klein supplied the compact idea: the extra spatial coordinate closes on itself as a microscopic circle, S¹. Under dimensional reduction, components of the 5D metric behave in 4D like gravity, a gauge field associated with electromagnetism, and a scalar field.

M⁴ × S¹ → 4D fields
07 / a geometric rhyme · not a derivation

Same instinct.
Different physics.

The Smith Chart maps electrical states into a circle so reflection can be solved graphically. Kaluza–Klein makes a coordinate itself circular so extra-dimensional geometry appears as fields in four dimensions. One does not explain the other.

Smith: conformal mapKK: compactificationShared: geometry compresses complexity
Not black magic. Two laws made visible by choosing the right circle.
